High Performance
Applicable Standard
ISO 11237 2SC
Exceeds SAE J517 100 R16

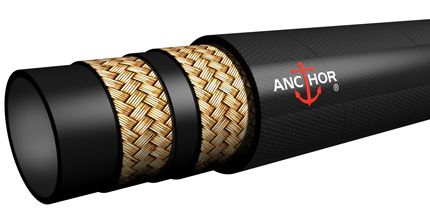

Liner
Oil resistant synthetic rubber
Reinforcement
Two braids of high tensile steel wire
Cover
Oil and weather resistant black synthetic rubber MSHA approved
Application
High pressure hydraulic lines. Approved to the double of minimum impulse cycles required with smaller bend-radius
Temperature
Hydraulics Oils: from -40ºC to 120ºC (from -40ºF to 248ºF)
Water Glycol Hydraulic Fluids: from -40ºC to 70ºC (from -40ºF to 158ºF)
Water: from 0ºC to 70ºC (from 32ºF to 158ºF)
Air: up to 70ºC (up to 158ºF)
