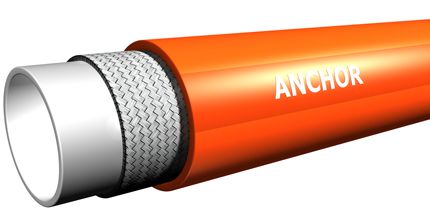

R7 ISO 3949 / SAE 100 R7 Orange Cover

Thermoplastic Line

of

Applicable Standard

SAE J517 100 R7
Hose dimensions according to ISO 3949 R7

Liner
Thermoplastic elastomer
Reinforcement
One braid of synthetic fiber
Cover
Orange polyurethane nonconductive cover

Application
Medium pressure hydraulic lines

Temperature

Hydraulics Oils: from -40ºC to 100ºC (from -40ºF to 212ºF)
Water Glycol Hydraulic Fluids: up to 70ºC (up to 158ºF)
Water: from 0ºC to 70ºC (from 32ºF to 158ºF)
Air: up to 70ºC (up to 158ºF)
