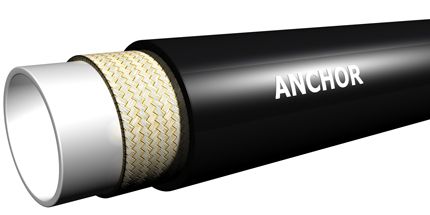

Thermoplastic Line
Applicable Standard
SAE J517 100 R8
Hose dimensions according to ISO 3949 R8
Liner
Thermoplastic elastomer
Reinforcement
One or two braids of synthetic fiber
Cover
Black polyurethane cover
Application
High pressure hydraulic lines
Temperature
Hydraulics Oils: from -40ºC to 100ºC (from -40ºF to 212ºF)
Water Glycol Hydraulic Fluids: up to 70ºC (up to 158ºF)
Water: from 0ºC to 70ºC (from 32ºF to 158ºF)
Air: up to 70ºC (up to 158ºF)
New System Solution available! Find it out in the Couplings Section!
